step-1:-construction of front view.

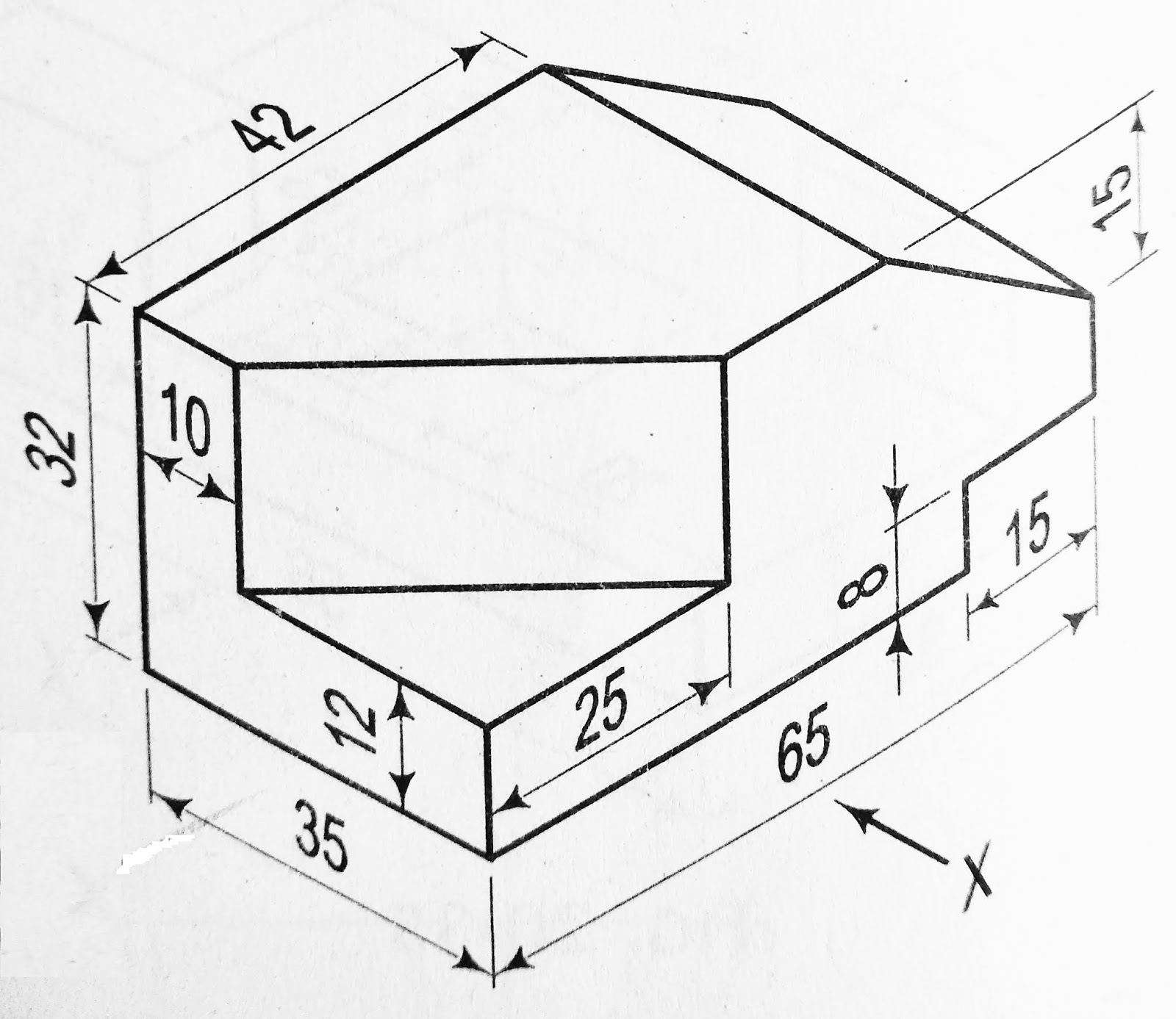

first you have to observe the given object from arrow side (x).for your front view.
i recommend to make a rectangle first rather than making all the parts seperatelly because making rectangle will give you the whole idea about the parts to be constructed seperatelly .
so we construct a rectangle of (65cm*32cm)
65cm=given directly
32cm=given directly
now you have to observe the given object from top side .for your top view.
again i recommend you to make a rectangle first rather than making all the parts seperatelly because making rectangle will give you the whole idea about the parts to be constructed seperatelly .
so we construct a rectangle of (65cm*35cm)
65cm=given directly
35cm=given directly
step-3:-construction of right hand side view (RHSV).
finally you have to observe the given object from right side for your right hand side view.(rhsv)
again i recommend you to make a rectangle first rather than making all the parts seperatelly because making rectangle will give you the whole idea about the parts to be constructed seperatelly .there will very less chance of error in this particular method of construction .so please prefer this method.
so we construct a rectangle of (35cm*32cm)
35cm=given directly in figure
32cm=given directly in figure
step-4:-follow the video & you solution is ready.
here you can do two things either you can mark the dimension on the drawn rectangles of front view,top view and side view or you can go through a video given above on his page and follow the steps of construction.
